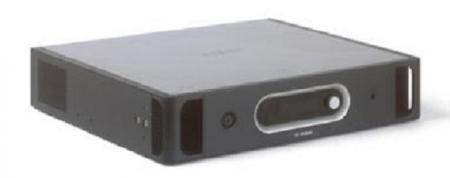

    DCN-CCUB2 Basic control unit

    Commercial Type No.: DCN-CCUB2
    Product No.: F.01U.172.638

    DCN-CCUB2 Basic control unit



    Supply voltage 100‑240 Vac 50‑60 Hz
    Power consumption 360 W
    DCN system supply 40 Vdc, max 85 W per DCN socket
    Total power supply 255 W
    RS‑232 connection 1 x nine‑pole Sub‑D female socket
    Frequency response 30 Hz – 20 kHz (-3 dB at nominal level)
    THD at nominal level < 0.5 %
    Cross talk attenuation > 85 dB at 1 kHz
    Dynamic range > 90 dB
    Signal-to-noise ratio > 87 dBA
    Cinch nominal input -24 dBV (+/- 6 dB)
    Cinch maximum input +0 dBV
    XLR nominal output -12 dBV (+6 / -24 dB)
    XLR maximum output +12 dBV
    Cinch nominal output -24 dBV (+6 / -24 dB)
    Cinch maximum output +0 dBV
    Mounting Tabletop or mounted in a 19” rack
    Dimensions (H x W x D)
     for tabletop use, with feet 92 x 440 x 400 mm(3.6 x 17.3 x 15.7 in)
    for 19” rack use, with brackets 88 x 483 x 400 mm(3.5 x 19 x 15.7 in)
      in front of brackets 40 mm (1.6 in)
      behind brackets 360 mm (14.2 in)
    Weight 7.9 kg (17.5 lbs)
    Color Charcoal (PH 10736) with silver

    DCN-CCUB2 Basic control unit
