Amply FreeSpace® DXA 2120

Amply Bose FreeSpace® DXA 2120
Download Catalogue DXA 2120

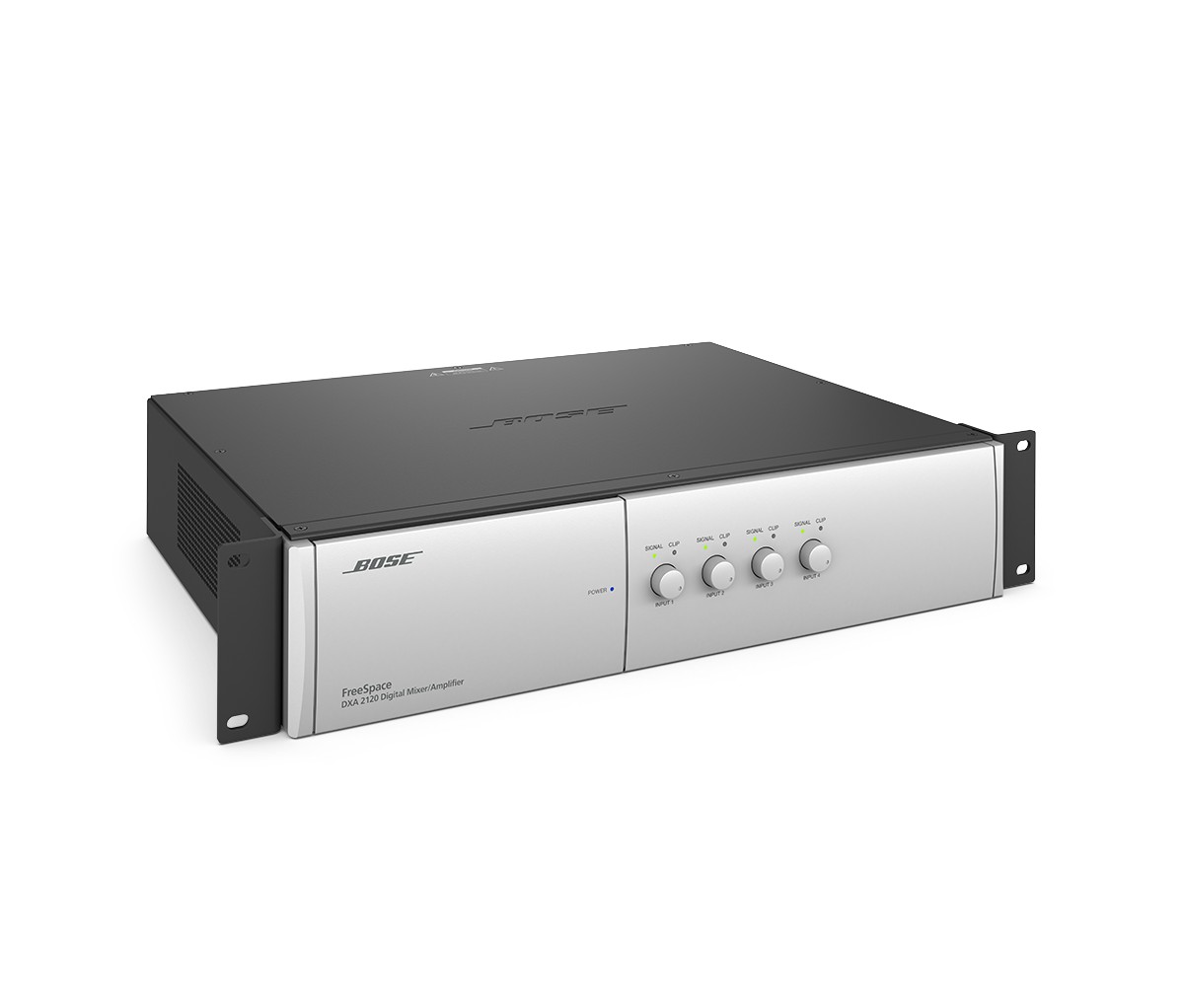

The Bose® FreeSpace® DXA 2120 digital mixer/amplifier features a 6-in by 2-out design that provides signal processing, mixing, routing, paging and two-channel amplification for installed applications. It offers three versatile operating modes and is easily configured using the controls on the front panel. No external computer is required.

Technical Summary

Amplifier Power
2 x 120 W at 4 ohms , 2 x 65 W at 8 ohms, or 2 x 100 W at 70/100V

Signal-to-Noise Ratio
75 dB (below rated power, A-weighted)

THD
≤0.5 % (at full rated power)

Dynamic Range
80 dB

Output Channels
2 channels

Input Channels
Mic/Line Inputs: 4 balanced
Line Inputs: 4 unbalanced
Page Inputs: 1 balanced
Direct Inputs: 1 balanced
