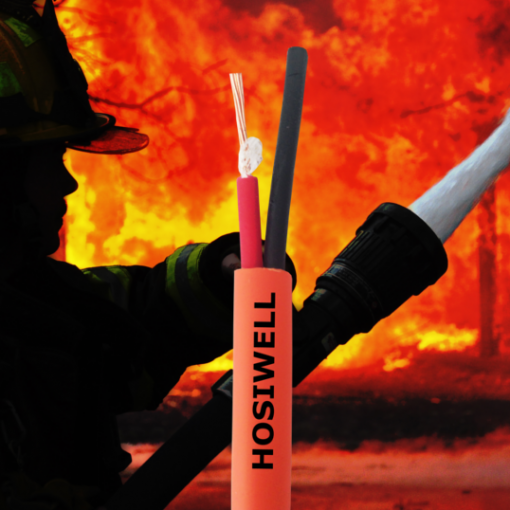

P/N: PM15002C-FR

Conductor: Plain Annealed Copper

Fire Barrier: Mica Tape

Insulation: XLPE

Binder:  Mylar tape wrapping

Outer Jacket, Colour: Low smoke and no halogen LSZH, Orange

Voltage Rate:  600/1000V

Dielectric Strength Between Pairs:  1.5 KV/5min

Temperature Rate:  -20°C to 90°C

Min. Bending Radius Minor Axis:  10 x 0.D

Standard: BS 6387 Cat. CWZ

Test Voltage: 2000 V

Compliance :

Construction
– IEC 60228, IEC 60502-1
Circuit integrity
– BS 6387 Categories C, W, Z
– IEC 60331 at 750ºC 3 hours
Flame propagation
– IEC 60332-1
– IEC 60332-3 Categories A, B, C
Acid gas emission
– IEC 60754-2
Smoke emission
– IEC 61034
