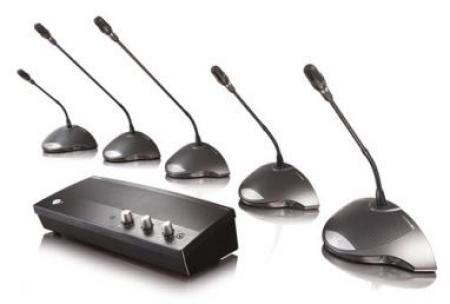

CCS 900 Ultro System

Mains voltage	100 to 240 VAC ± 10 %
Current consumption	maximum 0.9 A (100 VAC) to 0.3 A (240 VAC)
DC supply to contribution units	24 V ± 1 V (current limited)
Loudspeaker volume control	mute (50 dB att.) + 10 steps of 1.9 dB
Limiter threshold level to unit	10 dB above nominal level loudspeaker / headphone
Gain reduction due to number of open microphones (NOM)	÷ NOM ± 1 dB
Total harmonics
Nominal input (85 dB SPL)	< 0.5
Max. input (110 dB SPL)	< 0.5

Dimensions including feet(H x W x D)	84 x 361 x 143 mm(3.4 x 14.2 x 5.6 in)
Height of feet	5.5 mm (0.22 in)
Mounting	tabletop (portable or fixed)19-inch rackflush mounting
Weight	1.5 kg (3.3 lb)
