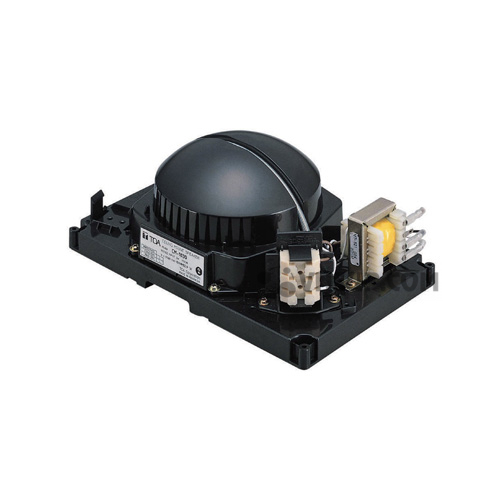

LOA ÂM TRẦN CM-760

Rated Input 6 W (for 100 V Line), 3 W (for 70 V Line) Rated Impedance 100 V Line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), (6.7 kΩ (1.5 W), 13 kΩ (0.8 W): Internal wiring must be changed) 70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), (6.7 kΩ (0.8 W), 13 kΩ (0.4 W): Internal wiring must be changed) Sound Pressure Level 90 dB (1 W, 1 m, 330 Hz - 3.3 kHz Pink noise) Frequency Response 100 Hz - 16 kHz Speaker Component 12 cm dynamic cone-type speaker Speaker Mounting Method Spring catch Applicable Cable 600 V Vinyl-insulated cable (IV wire or HIV wire) Solid copper wire: φ0.8 - φ1.2 mm 7-core twisted copper wire: 0.75 - 1.25 m㎡ Connection Push-in connector (Bridging terminal-2 branch type) Finish Baffle: ABS resin, off-white (RAL 9010 or equivalent color) Dimensions φ260 × 92 (D) (Exposed section) mm Weight 820 g (Bracket included)
