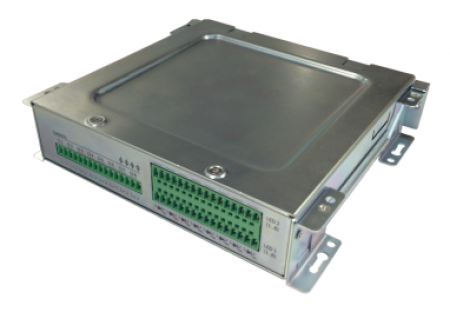

PRS-CSKPM Call station keypad module

  • Eight programmable control inputs linked to 16 outputs
  • Two serial interfaces to call stations or other keypads
  • Up to 16 keypads can be connected to one call station
  • Hotline/Zalo/Viber hỗ trợ : 096 971 6035 - 098 330 1700 - 028 3838 1269
    • Danh mục: Từ khóa:

    PRS-CSKPM Call station keypad module

    PRS-CSKPM Call station keypad module

    Power consumption 1.2 W (DC) excl. indicators
    Control inputs 8 x
    Max. current 0.5 mA
    Max. voltage 3.3 V (with 10 kohm pull-up)
    Control outputs 8 x 2 open collectors
    Max. current 100 mA
    Max. voltage 30 V
    Dimensions (H x W x D) 43 x 183 x 164 mm(1.69 x 7.20 x 6.46 in)
    Weight 0.8 kg (1.76 lb)
    Mounting Stackable metal enclosure
    Operating temperature -5 ºC to +55 ºC(+23 ºF to +131 ºF)
    Storage and transport temperature -20 ºC to +70 ºC(-4 ºF to +158 ºF)
    Humidity 15% to 90%
    Air pressure 600 to 1100 hPa

    PRS-CSKPM Call station keypad module
