Praesideo - Digital Public Address and Emergency Sound System D

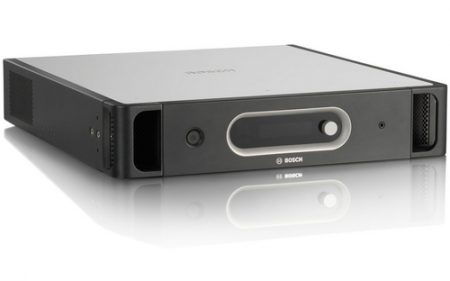

PRS-NCO3 Network controller

  • Public address and emergency sound system control unit
  • Control and routing of 28 simultaneous audio channels
  • Ethernet interface for configuration, control, diagnostics, and logging
  • Digital storage for pre‑recorded messages
  • EN 54‑16 and ISO 7240‑16 system certification
  • Hotline/Zalo/Viber hỗ trợ : 096 971 6035 - 098 330 1700 - 028 3838 1269
    • Danh mục: Từ khóa:

    PRS-NCO3 Network controller

    PRS-NCO3 Network controller

    Mains power supply
    Voltage 115/230 VAC ±10%, 50/60 Hz
    Power consumption 21 W with no load160 W with maximum load
    Battery power supply
    Voltage 48 Vdc -10% to +20%
    Performance
    Frequency response 20 Hz to 20 kHz (-3 dB)
    Line inputs 2 x
    Connectors 3‑pin XLR and stereo cinch (for each line)
    S/N >87 dBA at maximum level
    CMRR >40 dB
    Input range +6 dBV to +18 dBV (XLR)-6 dBV to +6 dBV (cinch)
    Control inputs 8 x
    Connectors Removable screw terminals

    PRS-NCO3 Network controller
